FREEDOM STEEL
All-Steel Flatbed Trailer
FREEDOM STEEL
Built to take on demanding jobs with the durability, strength, and reliability fleets depend on every day.
Three Configurations, One Flatbed
Straight frame, drop deck, extendable to 90 ft.
50,000 lb Concentrated Load Rating
Coil, machinery, and heavy industrial loads.
Lifetime Main Beam Warranty
Straight frame models. Covered for life.
Ready to Track
Standard FleetPulse® Track for visibility.
Configurations
find your Configuration
The Freedom Steel is the only Freedom model with straight frame, drop deck, and extendable configurations, built to perfectly match your operation.
Straight Frame
Versatile • General Freight
-
28′, 45′, 48′, and 53′ length
-
Limited lifetime beam warranty
-
Coil package available
-
Forklift kit available
Drop Deck
Extra Clearance • Tall Freight
-
Lower deck height clearance
-
Machinery construction equipment
-
Multiple axle configurations
-
Deep drop option available

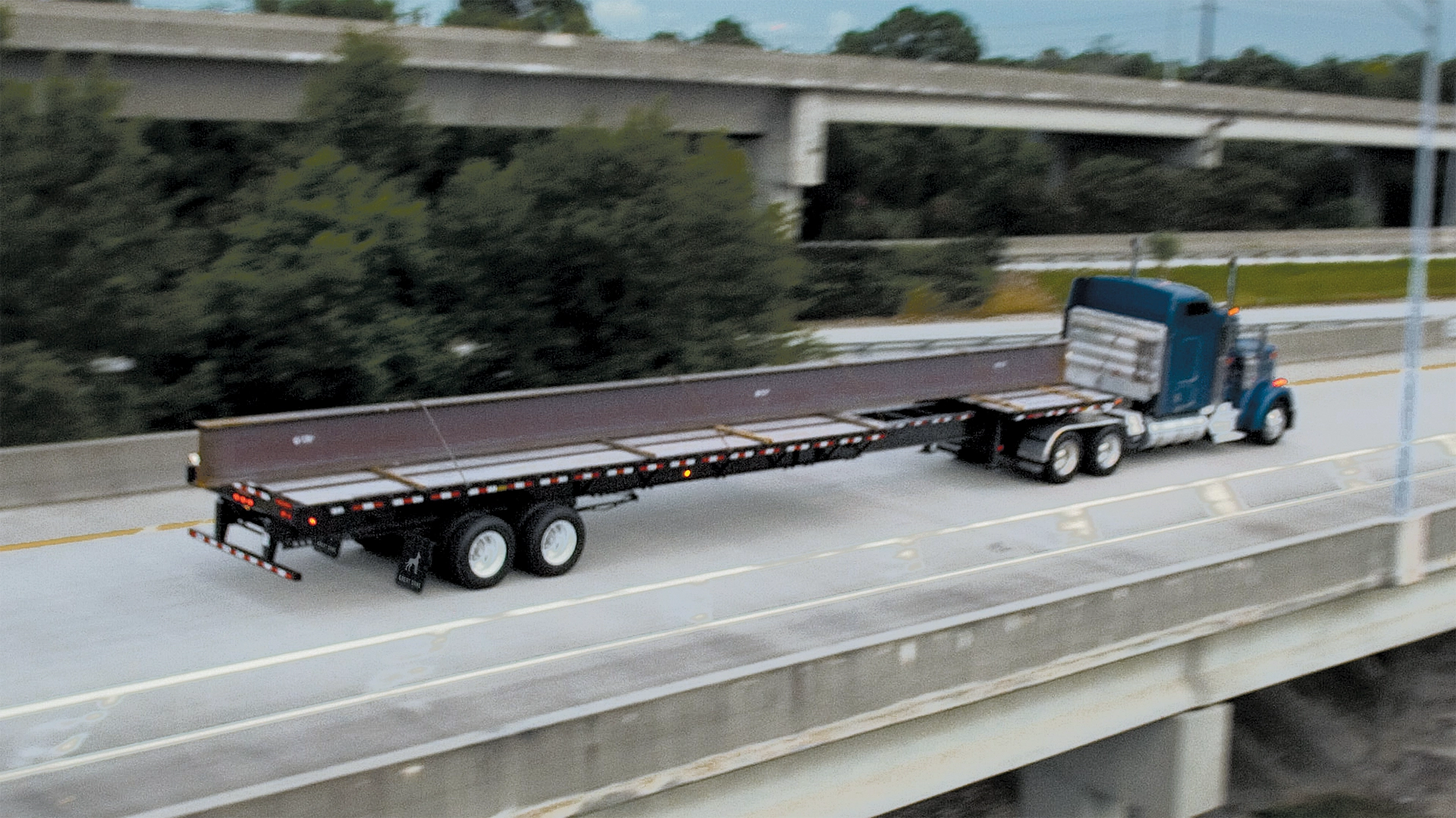

Extendable
Extendable Reach • Long Freight
-
Extends to 90 ft in 5-ft increments
-
Beams, poles, structural steel
-
Adjustable deck length as needed
-
Exclusive to Freedom Steel
INNOVATIONS
FREEDOM STEEL FEATURES
Every Freedom Steel flatbed trailer is built with industry-leading components that help reduce downtime and total cost of ownership on local and regional routes.
50,000 lb concentrated load ratings*
100 KSI steel flanges, a one-piece steel web main beam, and reinforced stress zones deliver the strength needed for steel coils, machinery, and concentrated-load applications.
*Load ratings apply to Great Dane’s stock trailer configurations and may be improved or reduced based on factors such as axle configuration, suspension setup, deck design, and other specifications. For guidance on selecting the appropriate configuration for your needs, please contact your Great Dane representative.

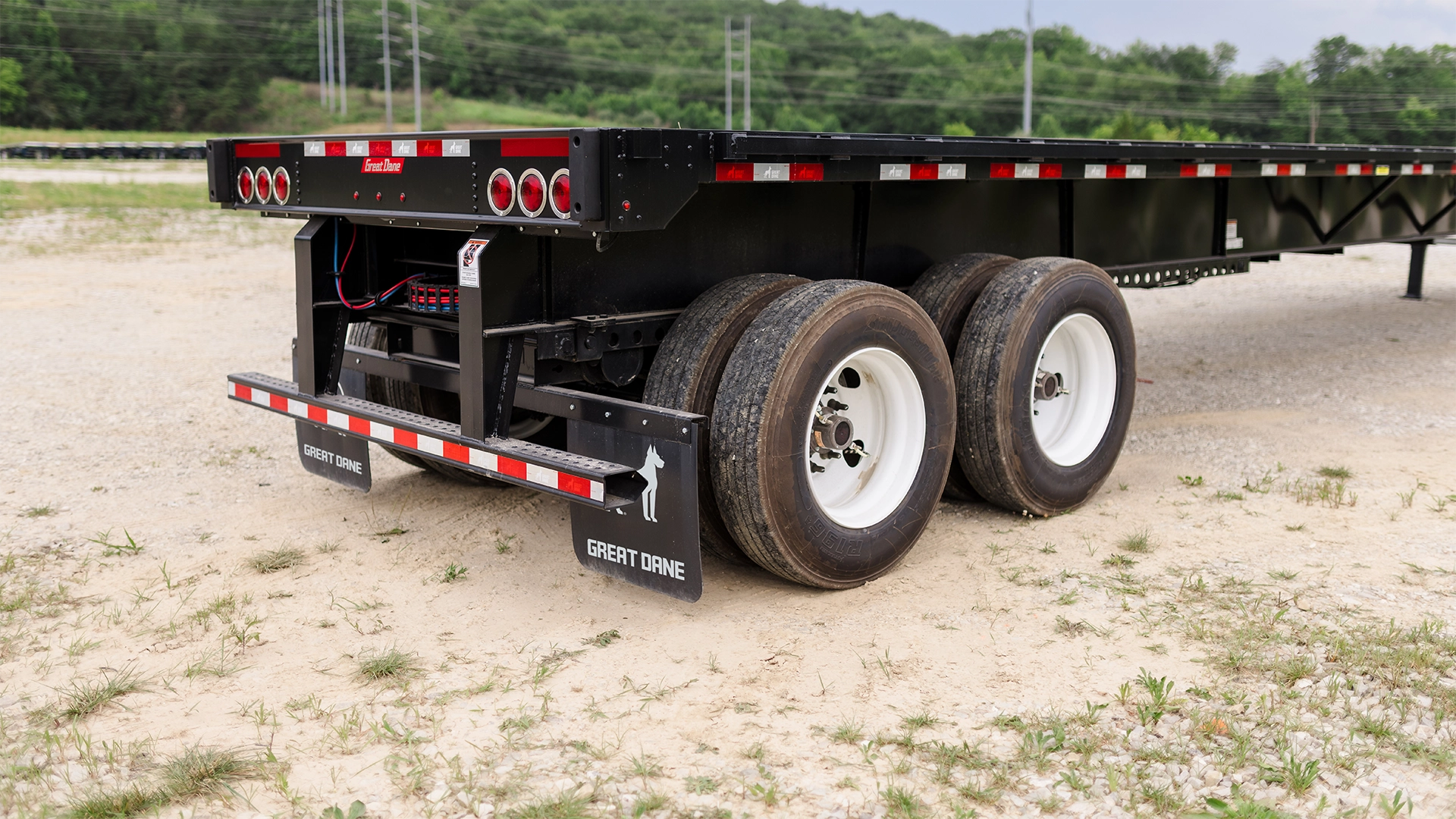

RIG30 Rear Impact Protection
RIG30 rear impact guard exceeds U.S. and Canadian safety standards. Rubber dock bumpers help protect against impact damage and support long-term durability.
Apitong hardwood flooring
Standard 1.13 Apitong hardwood flooring provides proven durability for demanding applications, with aluminum floor options available.
Corrosion Protection
Steel components are shot blasted and coated with a zinc-rich primer and urethane topcoat, while HDGV support gear bracing helps resist corrosion over time.
Versatile Load Securement
Heavy-duty steel siderails with stake pockets, pipe spools, rub rails, and winch options provide flexible securement for a wide range of freight.

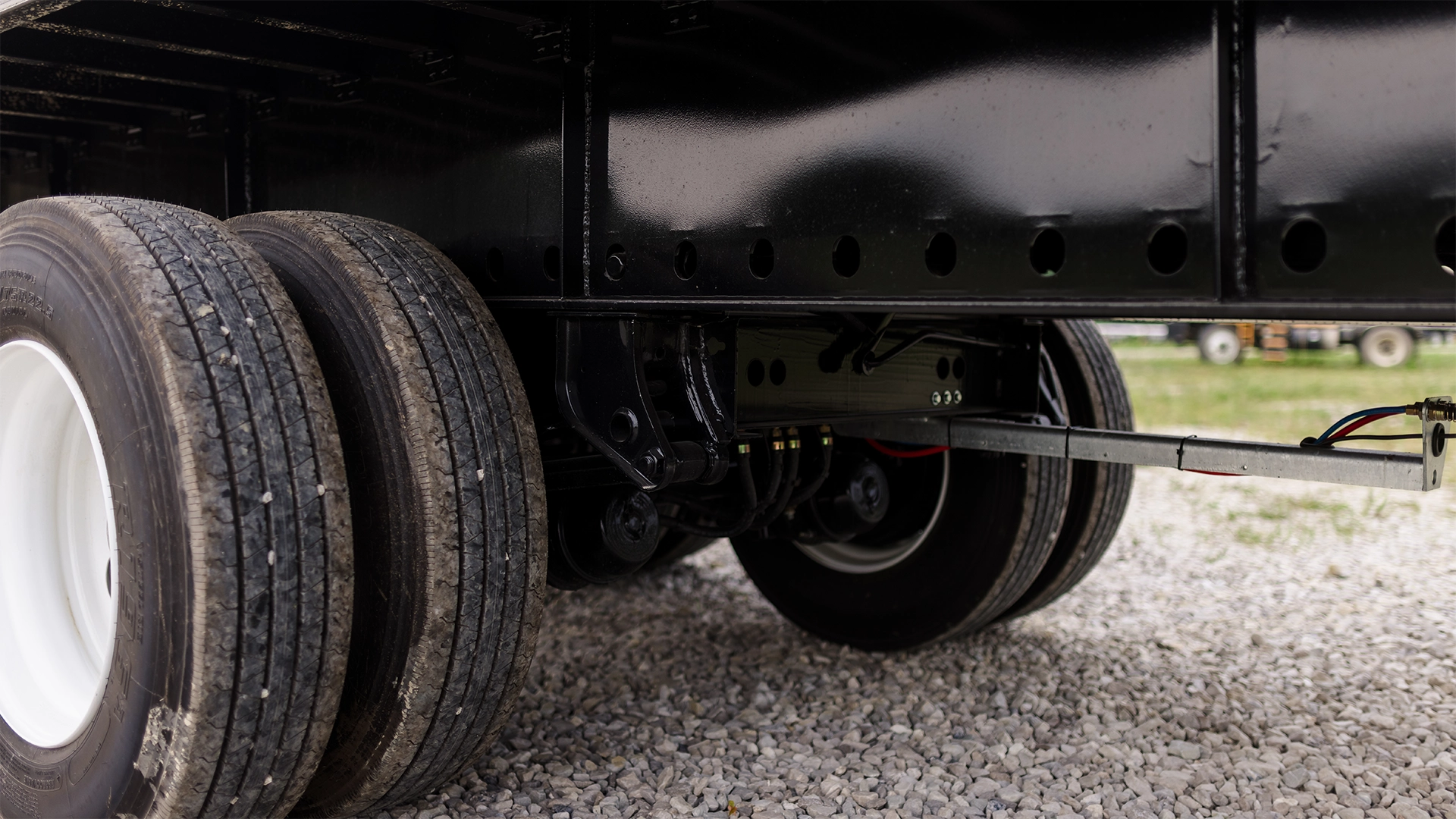

Multiple Axles Suspension Configurations
Multiple axle, wheelbase, and suspension configurations help optimize payload, weight distribution, and compliance for your operation.
FleetPulse Telematics
FleetPulse Track comes standard for GPS tracking, asset visibility, and trailer recovery with up to seven years of battery life.
Limited Lifetime Warranty
Limited Lifetime Main Beam Warranty on straight frame models help protect long-term fleet investment and ownership costs.
Straight frame, drop deck, extendable configurations
Available in straight frame, drop deck, and extendable configurations to support a wide range of freight and hauling requirements.
OPTIONS
CONFIGURE TO ORDER
Freedom Steel offers the most configurable platform in our Freedom series. From bulkheads and coil packages to axle configurations and specialized hauling equipment, our steel model can be built for your operation.
Bulkhead Options
D.O.T.-rated aluminum or steel. Protects drivers and cargo from load shifts.
Coil Package
Reinforced deck zones reduce floor damage from concentrated coil loads.
Rear End Options
Pintle hooks, forklift kits, dunnage racks, and lighting packages.
Extendable Options
48′ to 80′ or 53′ to 90′. Built for beams, poles, and structural steel.
Drop Deep Drop Options
More cargo height clearance for tall or over-dimension freight. Multiple drop depths available.
Suspension Packages
Standard, heavy-duty, tridem, quad, and sliding axle. Match payload and regional weight requirements.
Technical Details
FREEDOM STEEL SPECIFICATIONS
Interested in a closer look? Download the complete spec sheet for dimensions, axle and suspension configurations, flooring options, securement systems, bulkhead options, coil package details, and custom configuration information.
| Specification | Value |
|---|---|
| Construction | All-Steel |
| Main Beam | 100 KSI flanges and one-piece steel web main beam |
| Distributed Load Rating | 80,000 lbs* |
| Concentrated Load Rating | 50,000 lbs* |
| Flooring | 1.13″ Apitong hardwood |
| Crossmembers | Steel, 16″ centers |
| Available Lengths | 28′, 45′, 48′, 53′ |
| Available Widths | 96″ and 102″ |
| Frame Configurations | Straight, Drop Deck, Extendable |
| Suspension Options | Multiple configurations available |
| Rear Impact Guard | RIG30 standard |
| Telematics | FleetPulse Track standard |
| Warranty | Limited Lifetime Main Beam Warranty (straight frame only) |
*Ratings apply to Great Dane’s stock trailer configurations and may be improved or reduced based on factors including axle configuration, suspension setup, deck design, and other specifications. Contact your Great Dane representative for guidance on selecting the appropriate configuration for your needs.
COMPARE FREEDOM FLATBED MODELS
WHICH FREEDOM FLATBED IS RIGHT FOR YOU?
Every fleet has different priorities. Compare all-steel, steel-aluminum, and all-aluminum flatbed trailers to find the Freedom model that’s right for your operation.
FREEDOM STEEL
All-Steel Flatbed Trailer | Maximum Durability
Best for:
- Heavy equipment
- Construction materials
- High-impact loading
- Fleets prioritizing durability
FREEDOM COMBO
Steel-Aluminum Flatbed Trailer | Strength & Payload
Best for:
- Mixed freight
- Regional fleets
- Balanced payload and strength
- Everyday versatility

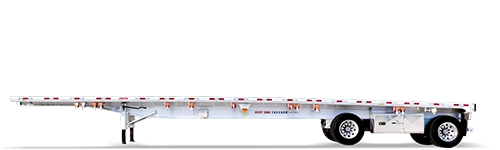

FREEDOM ULTRA
All-Aluminum Flatbed Trailer | Maximum Payload
Best for:
- Weight-sensitive freight
- Long-haul operations
- Corrosion resistance
- Maximum payload
BUY GREAT DANE INVENTORY
FLATBED TRAILERS
Browse available inventory or connect with your Great Dane dealer.
What Every Fleet Should Know
The 2026 Freedom Flatbed Guide
Learn practical strategies for:
• Improving safety and compliance
• Reducing downtime and maintenance costs
• Maximizing flatbed versatility & increasing fleet productivity
Get Started
Talk with a Great Dane representative about frame type, load demands, options, and configuration.
FAQS
YOUR QUESTIONS ANSWERED
When should I choose a steel flatbed trailer over aluminum?
Choose Freedom Steel when durability, concentrated-load performance, and long-term structural strength are more important than maximizing payload. It’s ideal for steel coils, construction materials, heavy equipment, and operations that demand a rugged platform.
What is the load rating for the Freedom Steel Flatbed?
Freedom Steel offers an 80,000-lb* distributed load rating and a 50,000-lb* concentrated load rating over a 4-foot span in standard configurations. Load ratings may vary based on trailer length, axle configuration, suspension setup, and other specifications.
*Ratings apply to Great Dane’s stock trailer configurations and may be improved or reduced based on factors including axle configuration, suspension setup, deck design, and other specifications. Contact your Great Dane representative for guidance on selecting the appropriate configuration for your needs.
What freight is best suited for Freedom Steel?
Freedom Steel is designed for steel coils, construction materials, structural steel, pipe, machinery, equipment, and other concentrated-load applications where durability and strength are critical.
Is Freedom Steel available in an extendable frame?
Yes. Freedom Steel is the only trailer in the Freedom lineup available in straight frame, drop deck, and extendable configurations. Available 48-ft and 53-ft models extend to accommodate extra-long freight such as beams, poles, and structural steel.
What is the difference between steel, combo, and aluminum flatbeds?
Freedom Steel (All-Steel) delivers maximum durability, concentrated-load capability, and the broadest range of configurations.
Freedom Combo (Steel-Aluminum Combo) balances strength and weight savings for regional and mixed-freight applications.
Freedom Ultra (All-Aluminum) maximizes payload and fuel efficiency for long-haul operations where trailer weight is a primary consideration.
Is Freedom Steel good for steel coil hauling?
Yes. Freedom Steel is engineered for concentrated-load applications and offers a 50,000-lb concentrated load rating over a 4-ft span. An available coil package adds reinforcement in the coil area to help protect the floor structure during repeated heavy loading.
